| Place of Origin |
Fujian China (Mainland) |
| Brand Name |
SEA FOREST |
| Model Number |
SF-100WP |
| Size |
1166x673x40mm |
| Number of Cells |
36 |
| Max. Power |
100W |
| Material |
Polycrystalline Silicon |

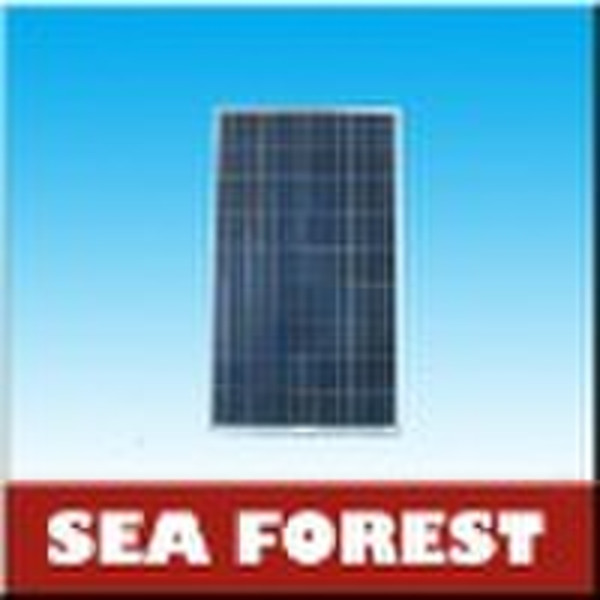

We are Golden Supplierfor 6 years(since 2004) at alibaba.com we manufacture and supply 1w - 300Wsolar panels.Products information;Product name: 100W Monocrystalline solar panelModel:SF-100WPMaximum Power:100WProduction Tolerance: ±5%Maximum Power voltage: 17.2VMaximum Power current: 5.81AOpen circuit voltage: 21.8VShort circuit current: 6.46ACell efficiency: 14.5%Module efficiency: 12.74%size of modul (wide and high): 1166 x673 x40mmframe (typ, material and thigness): Anodised Alu. alloy frame,50mm thinessnumber of cells: 36pcssize of cells (wide and high): 156mmx122mmWeight per piece: 10kgtype of junction box: PV junction box with TUV certificatecable type and length,connector typ: Nonemaximum system voltage: 1000V Temperature coefficient of Isc: +0.05%/ Temperature coefficient of Voc: -0.34%/ Temperature coefficient of power: -0.5%/ Temperature coefficient of Im: +0.05%/ Temperature coefficient of Vm: -0.34%/ NOCT (Nominaloperating cell temperature): 47(+2) Wind Bearing: 60m/s(200kg/sq.m) Impact Resistance Hail Impact Test: 227g steel ball fall down from 1m height Quality guarantee: 5 years product warranty and 20 years -20% of power FF(%): 70%---72% Packing:by pallet
