| Place of Origin |
Fujian China (Mainland) |
| Brand Name |
sea forest |
| Model Number |
160w |

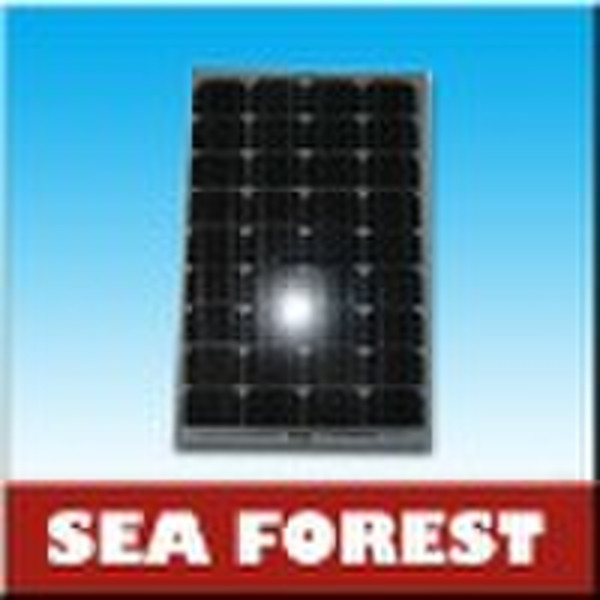

we manufacture and supply 0.6w-300Wsolar panels. 160w solar panel technical data is the following: Products information; Model:160W Monocrystalline solar panel Size: 1580x808x35mm Cell size(mm):125×125 Net weight:14.5kg Work voltage:34.4V Work current:4.66A Open circuit current:43V Short circuit current:5A Maximum system voltage(V):1000V Temperature coefficients of Isc(%):+0.1/ Temperature coefficients of voc(%):-0.38/ Temperature coefficients of pm(%):-0.47/ Temperature coefficients of Im(%):+0.1/ Temperature coefficients of vm(%):-0.38/ Noct(): 48±2 Temperature range:-40---80 Surface maximum load capacity: 60m/s(200kg/sq.m) Junction box type: ppo.black Connectors and cables type: 4mm2 Length of cables(mm):900 Cell Efficiency (%):16% Walt tolerance: ±5% Frame(material.corners.etc):High transmissivity low-iron 3.2mm Toughened glass. Standard test conditions: Am1.5 100WM/cm2 25 FF(%):≥73.3% Warranty:5 years for the whole product,for the power,90% for 10 years ,80% for 25 years. Certification:CE,IEC,TUV,UL ,ISO9001 Packing information: Inner box: 1 PC/1 inner box Out box: 2 inner box(2PCS)/1 out box 20FC:128out box(256 inner box=256PCS)
