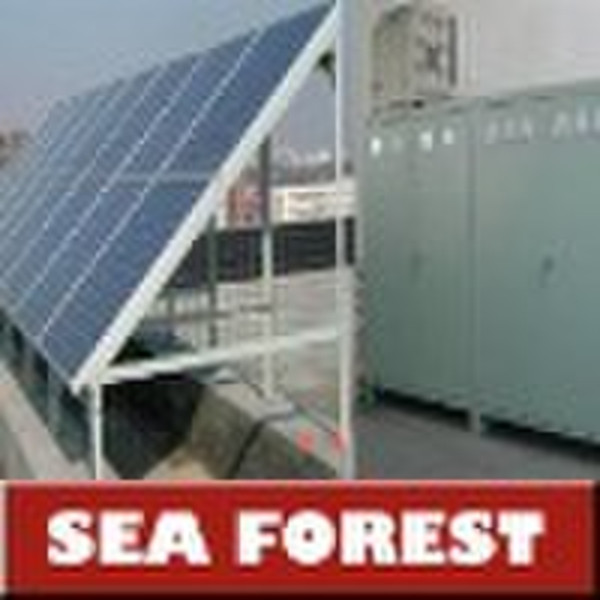

30KW Off Grid Solar Power System

1. Design system Technical description: 2.1 Solar panel: 30kW 2.2 Battery: 220V/150Ah 2.3 Controller: 220V/200A 2.4 Inverter: 220V/20KW 3. Design system device statistics, related parameter and price. Name of EquipmentTypeParameter IlluminateQuantitySolar panelSP150-24MSize: 1580x805x50mm Rated power:150W Type of Crystal:Monocrystalline silicon 200piecesBatteryNP2-1000Rated voltage:2V Rated capacity:1000Ah 110pcsControllerCQ220100Rated voltage:DC220V Rated current150A Functions: Protect to charge and discharge too much, Short Current Protection, Over current protection, Solar panel reversed polarity protection, Battery reversed polarity protection, Charging temperature compensation, Lighting protection. 1pcInverterCN20KWRated voltage 220V Output power:20KW Output voltage:AC220V Output frequency: 50Hz±0.1Hz Contravariant efficiency:80% 92% 1pcBattery bracketArticle with National Standard 4x40(mm) Angle and spraying painting for iron. The designing of size and structure in accordance with installation site 1setSolar panel bracketSelf-madeArticle with National Standard 4x40(mm) Angle and spraying painting for iron. The designing of size and structure in accordance with installation site 1setIndoors control cabinetSelf-madeThe size and structure of National Standard mental spraying painting iron cabinet is designed based on installation site wire harnessOutsourcingStranded copper selection is order according with installation site. 2000m
